Drawing Mistakes That Add Cost (and How to Avoid Them)

Most costly fabrication jobs are not caused by hard material or complex geometry. They are caused by drawings that specify things the process cannot do, or that leave out things the shop needs to know.

← Field Notes

The title block says +/-0.005" on all dimensions. The part has eight machined features. Three of them actually need that tolerance. The other five are clearance holes, non-contact surfaces, and a chamfer on an end that nobody will ever measure. The shop has to hit +/-0.005" on all of them anyway, because the drawing says so.

That is not a precision requirement. That is a cost driver.

Most expensive fabrication jobs are not expensive because the geometry is hard. They are expensive because the drawing asks for things the process cannot deliver efficiently, or leaves out what the shop needs to make the right decision. The mistakes below show up regularly.

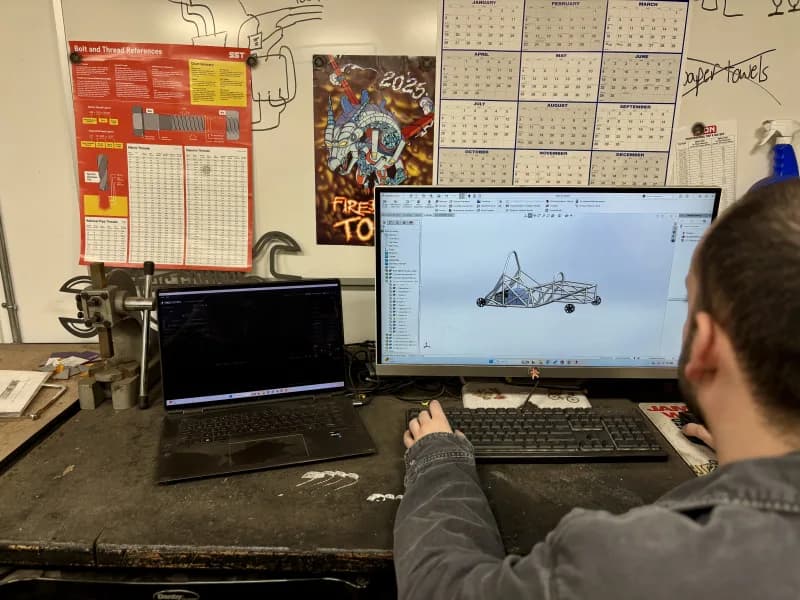

CAD design work at a computer in an engineering environment

Title block tolerances applied to everything

The default title block tolerance applies to every dimension without its own callout. On many drawings, that means it applies to all of them.

+/-0.005" is a moderate precision requirement. Not impossible, but it requires attention on every feature. If five features actually need it, calling it out on fifty is adding cost to the other forty-five without adding function.

Sort your dimensions by function. Identify the ones with real fit or function requirements and tolerance those individually. Let the title block cover everything else at a looser standard. A clearance hole that accepts a 3/8" bolt does not need the same tolerance as the bore a bearing is pressed into.

Inside corner radii

A milling cutter is round. A sharp inside corner in a milled pocket cannot be produced by a standard end mill. The smallest achievable inside radius is set by cutter diameter and depth of cut. A 1/4" end mill leaves a 1/8" radius minimum. A pocket 3/4" deep may require a larger cutter for rigidity, which leaves a larger radius still.

Drawings that specify 0.000" inside radius, or leave corners unspecified, are asking the shop to use a very small cutter with multiple passes (slow), undercut the corner with a relief operation (extra setup), or tell you the drawing cannot be held as drawn.

If the mating part does not require a sharp corner, specify a corner radius that is achievable. If you are not sure what is reasonable for the pocket depth and material, ask before the drawing is finalized.

Material callouts

"Steel" is not a material specification. "A36 hot-rolled" is. "4140 annealed" is a different part. "1018 cold-drawn" is another.

A36 and 4140 have different machinability, strength, and heat treat response. If the shop sources a different grade because the drawing does not specify one, and the part fails in service, the drawing did not establish what was actually required.

Minimum callout for most structural parts: alloy designation and condition (hot-rolled, cold-drawn, annealed, T6). For critical applications, add the material standard (ASTM A36, AMS 2024-T3).

"Match existing part"

"Match existing part" is not a dimension. Neither is "see sample."

If the shop does not have the existing part in hand, or if the sample is a production unit that cannot be disassembled and measured, the drawing has gaps. The shop fills gaps with estimates, or calls with questions, or makes parts that do not fit and sends them back.

This comes up most on replacement parts and modifications to existing equipment where no original drawing exists. The fix is straightforward: measure the part, record the dimensions. If some features cannot be measured accurately, note what they do functionally so the shop can make a reasonable call.

Conflicting dimension chains

A correctly dimensioned drawing defines geometry without redundancy. If two dimensions together imply a third, and all three are called out, they have to agree exactly. If they do not, the shop has to decide which one to hold.

This typically shows up on hole patterns: the drawing gives the distance from datum to hole A, from datum to hole B, and from hole A to hole B. Those three numbers either close or they do not. If they do not, the drawing has a conflict.

CAD-generated drawings usually avoid this because dimensions derive from model geometry. Manually dimensioned drawings are more prone to it. Check your dimension chains before the drawing goes out.

Thread class of fit

Thread callouts that specify class of fit when the application does not require it add inspection requirements without adding function. Class 2 is the standard production fit for most fastener applications. Class 3 is a closer tolerance used when the thread carries a structural or precision load.

Calling out 3A/3B on a through-bolt clearance joint means the shop has to verify fit to a tighter standard than the part will ever see in service. If the application is a standard bolted joint, leave the class unspecified or call class 2.

Quick reference

MistakeWhat it costs youFix
Title block tolerance on everythingInspection time on non-critical featuresTolerance critical features individually; loosen the title block
0" inside corner radius in milled pocketExtra setups or rejectionSpecify achievable radius based on pocket depth
Vague material calloutWrong material sourcedAlloy designation + condition (A36 HR, 6061-T6, etc.)
"Match existing part"Parts that do not fitMeasure the existing part; record actual dimensions
Conflicting dimension chainShop holds the wrong dimensionCheck that all chains close before release
Class 3 thread on standard bolted jointUnnecessary inspection costClass 2 for standard joints; reserve class 3 for precision applications
